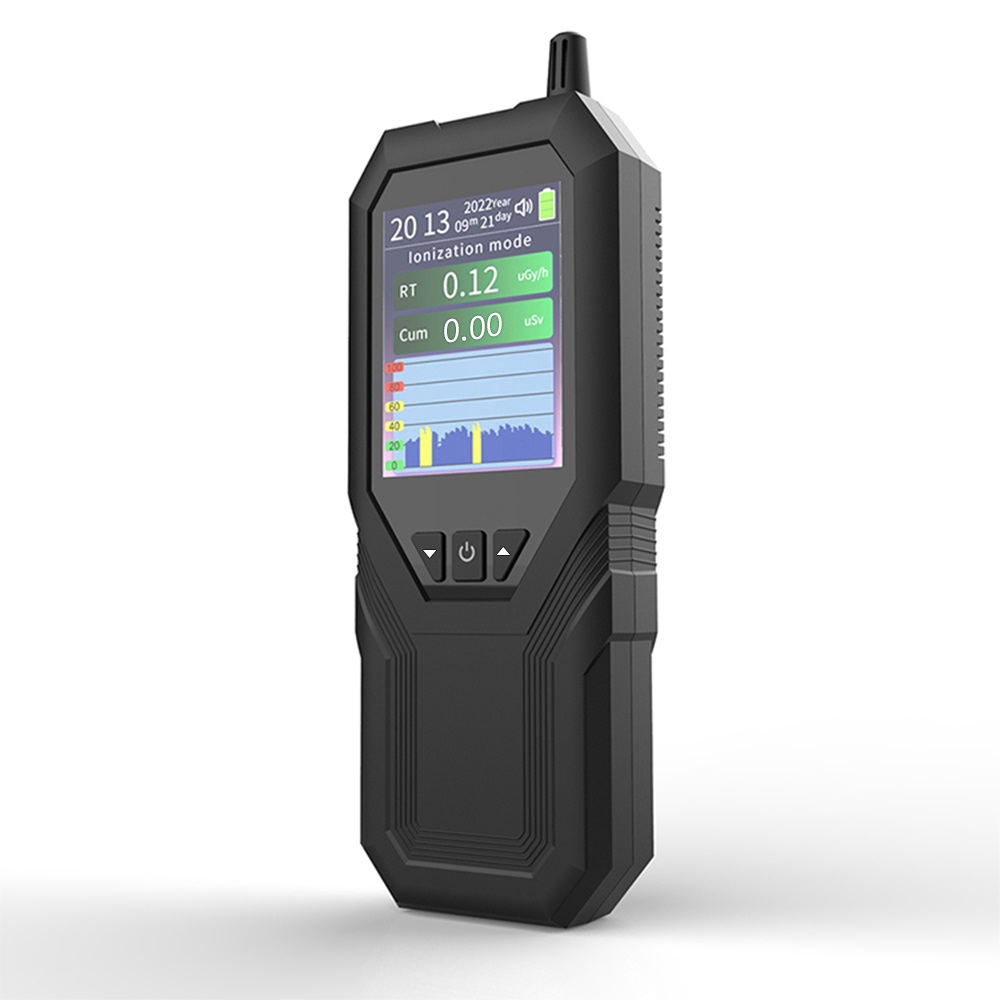

Nuclear radiation detector DM157
Category : Radiation detector
Hits : 800
Brief :
Nuclear radiation detector DM157
  • Description
  • Inquiry

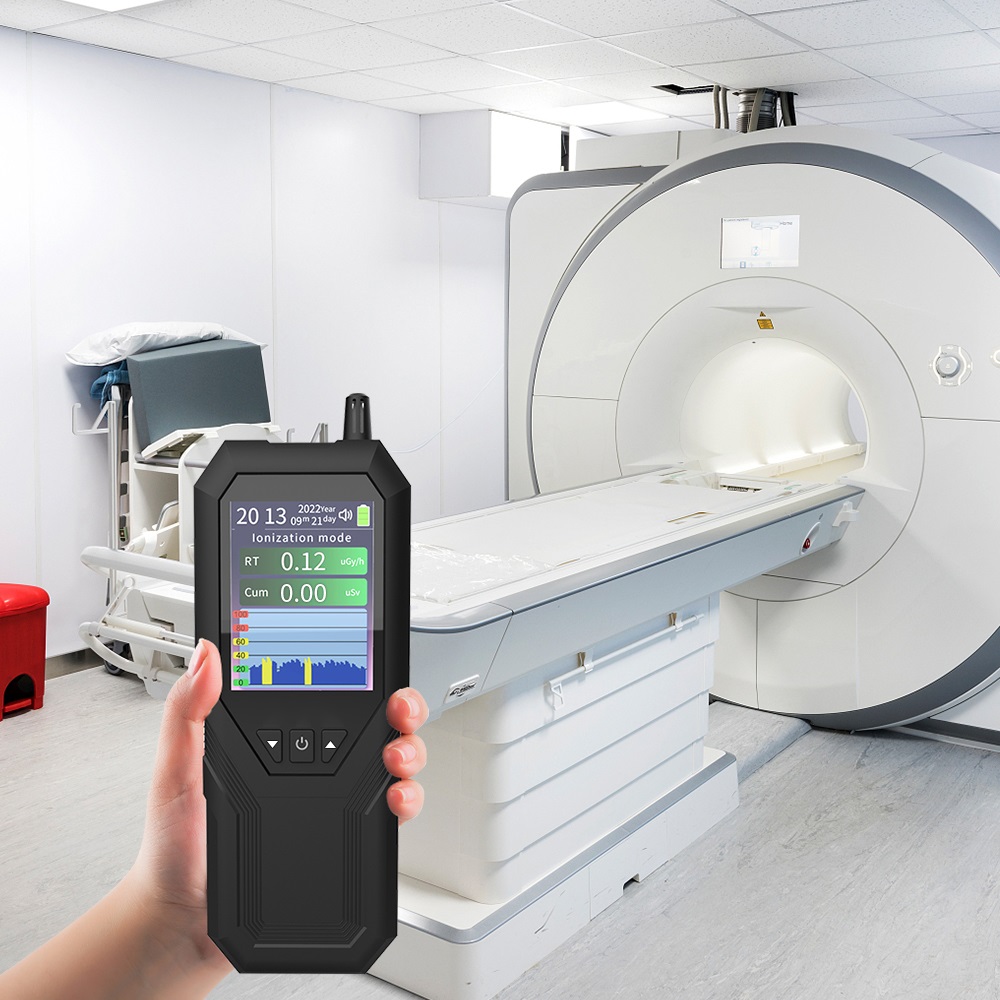

It is a radiation dose alarm instrument also called Geiger Muller counter,built-in high sensitivity Geiger tube as a detector, mainly used for monitoring the radiation of x, y and hard beta rays in various radioactive workplaces, with fast response and wide measurement range. It can display the current dose rate and accumulated dose rate. Widely used in nuclear power plants,accelera-tors, iron and steel, chemical industry, isotope application,industrial X-y, radiological medical treatment, cobalt source treatment, y radiation, radiological laboratories.


Nuclear radiation detector DM157

Product name: Ionizing Radiation Detector radiation of X, γ,hard β rays

Product size: 189*70*30mm
Material: ABS ,Color: White

Display: LCD screen display
Sensor type: geiger miller counter(GM Tube)
Radiation dose rate range: 0.01μSv/h-1000μSv/h(can be up to 10mSv/h)
Cumulative dose: 0.01μSv-500.0mSv
Energy response: 50KeV~1.5MeV≤±30%(to 137CS-)
Sensitivity: 80CPM/μSv/h(to Co-60)
Power supply: rechargeable lithium battery 2000mah
DC 5V(1A-2A) port charging line( included)
Operation temperature: -10°C~45°C
Operation humidity: under 80%

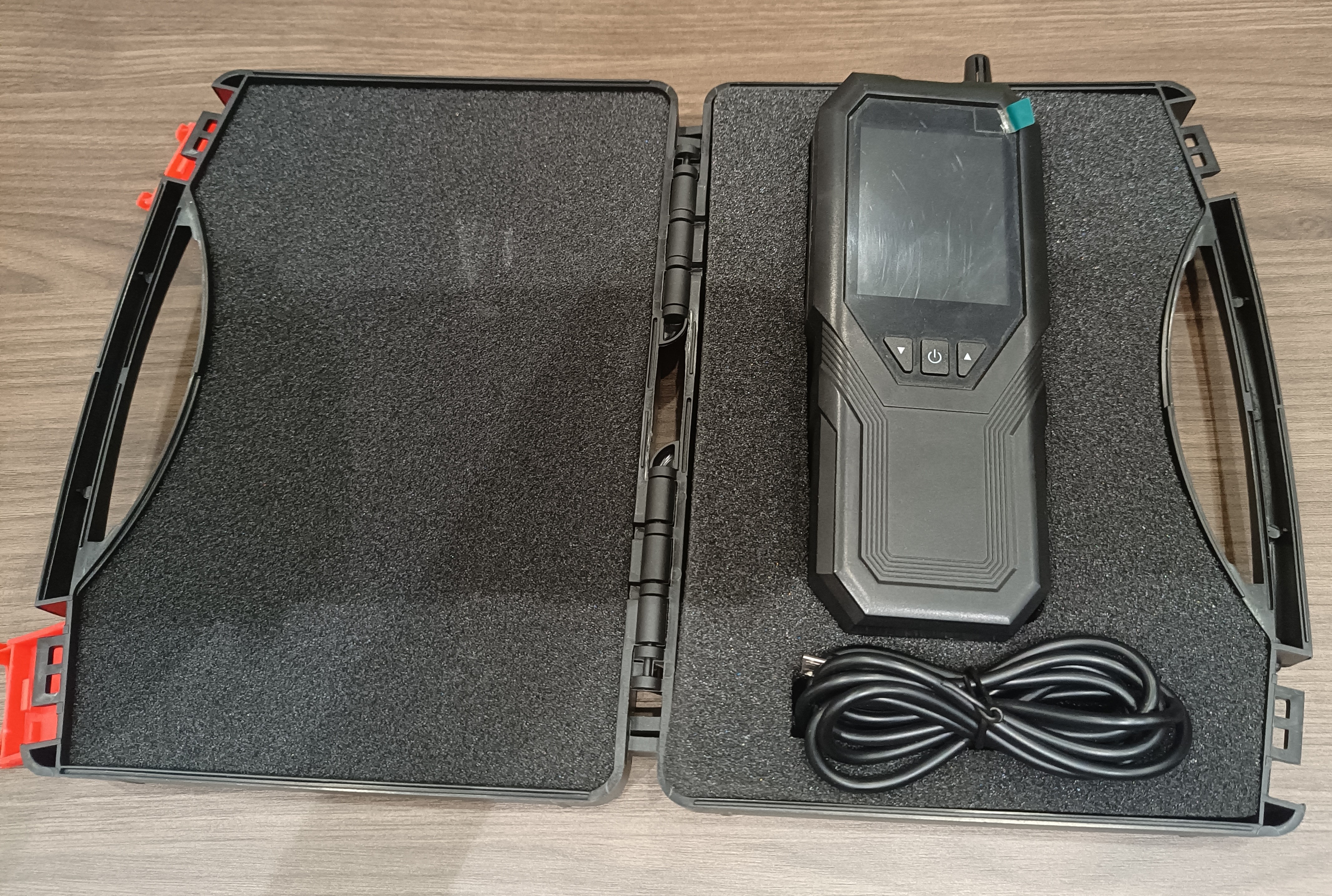

What are included :Main Unit+ manual+ charging cable
Advantage
-User can switch multiple radiation dose rate units such as μSv/h,μGy/h, mR/h, cps, cpm
-With sound alarm when dose rate and cumulative dose are over threshold.
-User can adjust the threshold of dose rate and cumulative dose.
-With date and time display, user can adjust the date and time.
-User can adjust the screen brightness.

Product name
geiger detector
Product size
189*70*30mm
Display
LCD screen display
Material
ABS
Cumulative dose
0.01μSv-500.0mSv
Sensor type
geiger miller counter(GM Tube)
Detecting rays
X, γ, hard β rays, radiation
Energy response
50KeV~1.5MeVs±30%(to CS-137)
Sensitivity
80CPM/Sv/h (to Co-60)
Operation humidity
≤ 95%(+45°C)
Operation temperature
-10°C~45°C
Power supply
2000 mAh Rechargeable Lithium battery,Charging via Micro USB Port
