DM73B-WIFI Multi-function CO2 PM2.5 Air quality detector
Category : DM73B WIFI
Hits : 1496
Brief :
TUYA WIFI Multi-function CO2 PM2.5 Air quality detector

  • Description
  • Inquiry

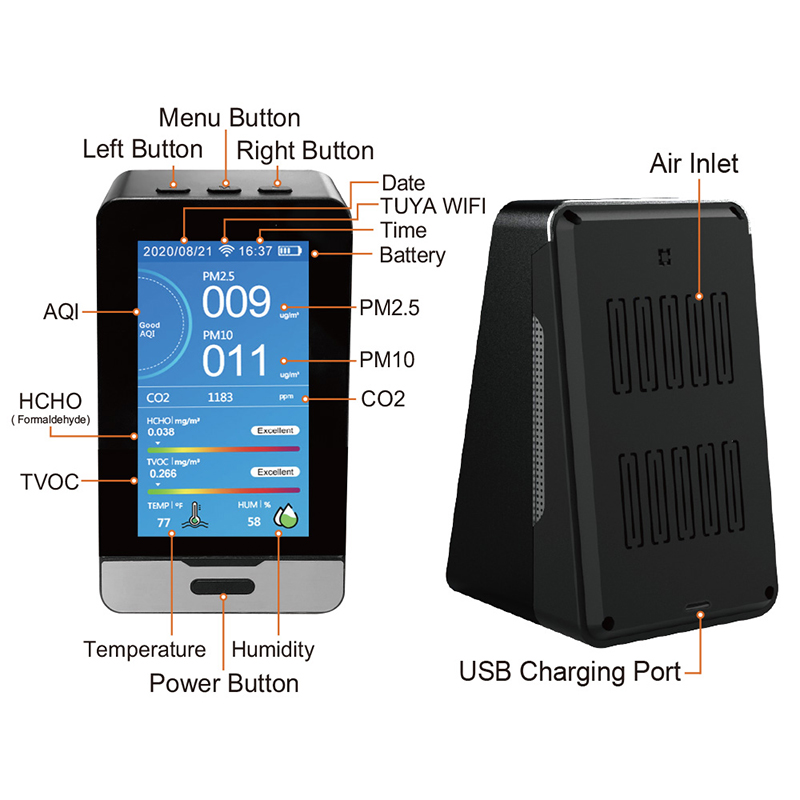

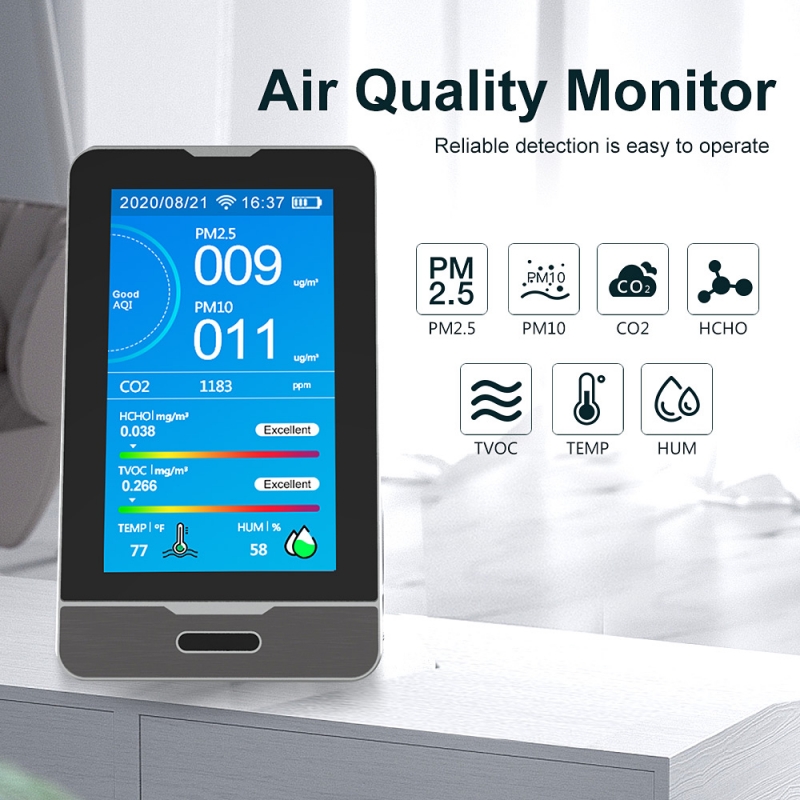

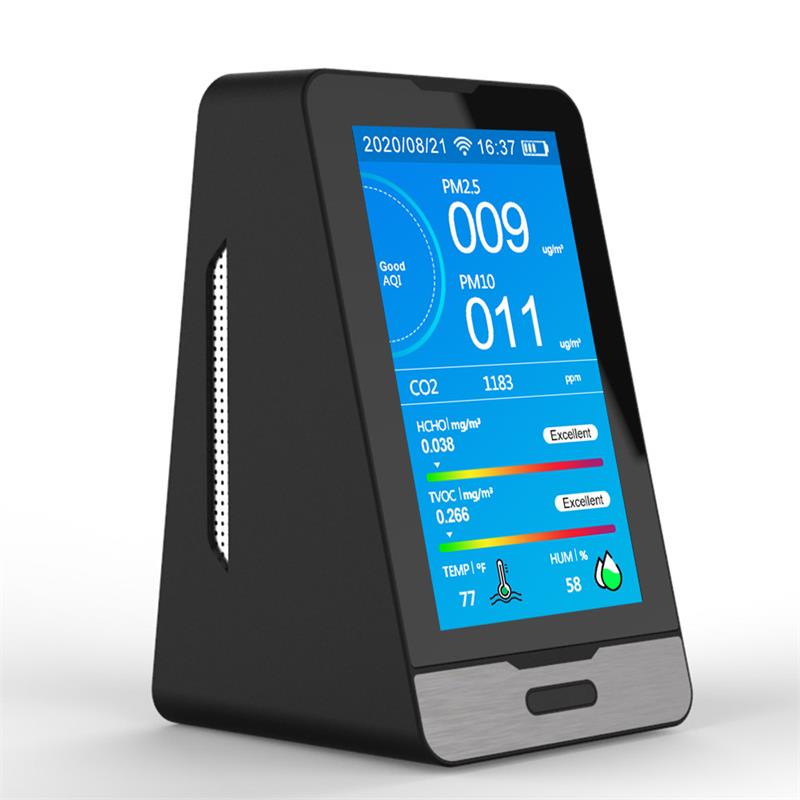

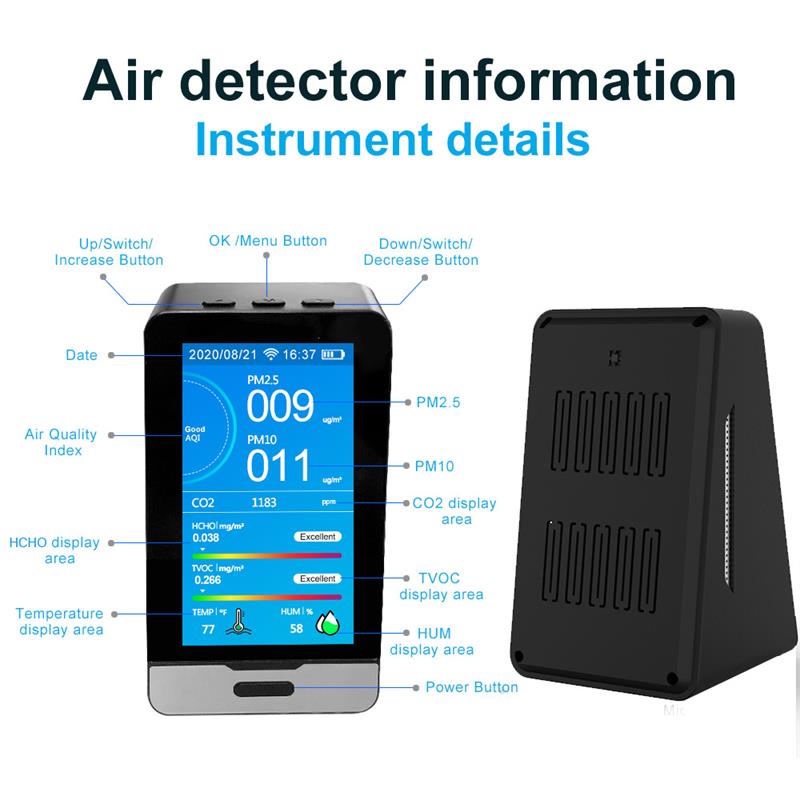

This is an advanced multifunctional 10 in one air quality monitor that detects carbon dioxide (CO2), particulate matter (PM2.5/10),formaldehyde (HCHO), total volatile organic compounds (TVOC),air quality index (AQI), temperature, and humidity with time, records and WIFI function.
As a scientific air quality testing device, it combines numerous different types of high-quality air sensors and a built-in fan to allow real-time monitoring of all values on its digital LCD display. It is easy to operate,quality assured and worth buying.

-Material:ABS

-Product Size:132.5*79*82.3MM
-WiFi  TUYA APP ,Transfer datas to mobiles phons ,support  Android and Apple phones  ,also support all kinds of languages
- Temperature unit between Celcius and Fahrenheit  Switch

-CO2 Technology :  infrared ( NDIR)

-PM2.5 Sensor technolology : Laser Scattering

-HCHO/TVOC :Electrochemistry sensor
-Detection range:

CO2 Detection range:  400-5000 ppm
PM2.5 Detection range : 0-999 ug/M3
AQI Detection range: 0-500
HCHO Detection range:0.001-1.999Mg/M3
TVOC Detection range: 0.001-9.999Mg/M3
-History Records  save.
-CO2 Alarm  value : 1000ppm
-CO2 Alarm  on /off function(if users do not like alarm ,people can turn it off by hand operation)
-Power supply:rechargeable  Li-battery 3000mah includding USB Chargeing cable

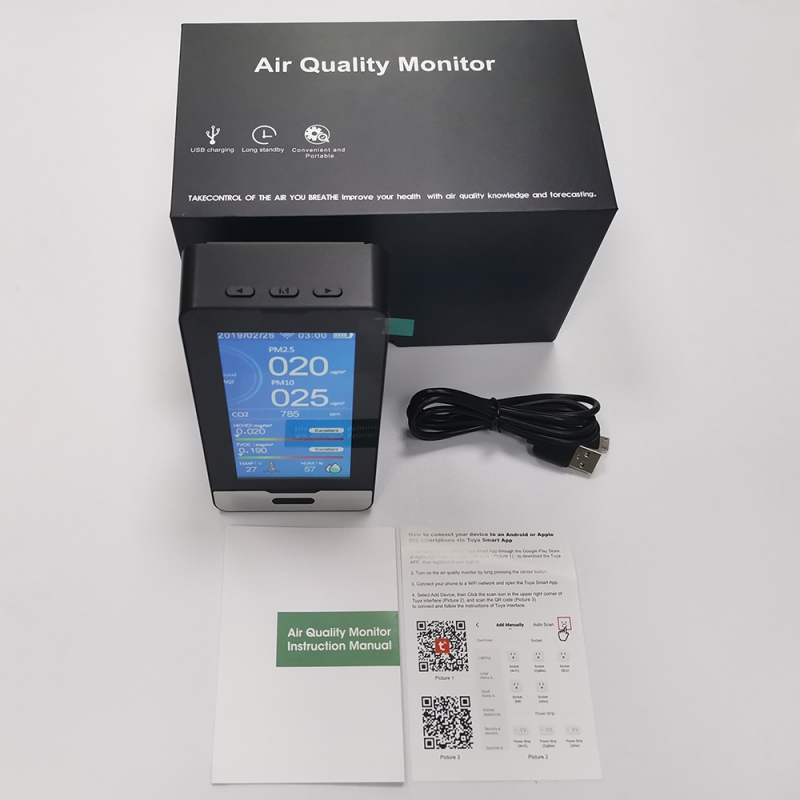

-Included:Main Unit+manual+charging cable

Advantage :
-WiFi  TUYA APP,datas transfer to mobile phones  to check CO2 values Wireless
-WiFi  TUYA APP,Support Android and Apple phones  to check CO2 values,Wireless

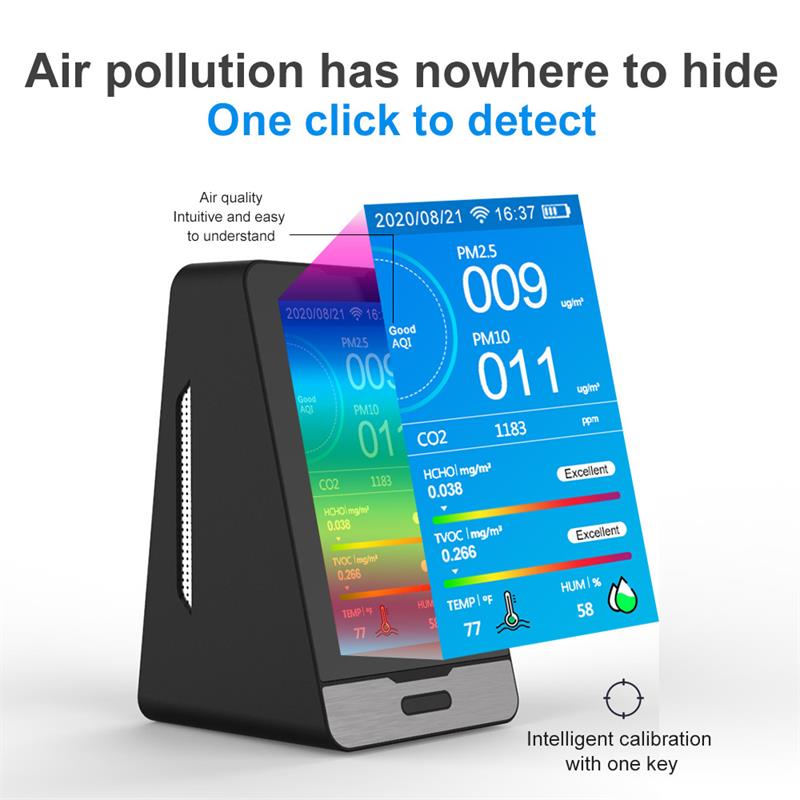

-Auto calibration
-Exceeding Alarming with auto detection and measuring
-Different interface switching.
- History Records save
-Temp unit:  Celcius and Fahrenheit  Switch
-Alarm sound set: On and off

Package details:
Product N.W.:225g
Product G.W.:480g
Package Dimension:18.7*11.5*10.3cm
CTN Dimension:56*28*42cm
CTN Weight:10.5KG
20sets/CTN

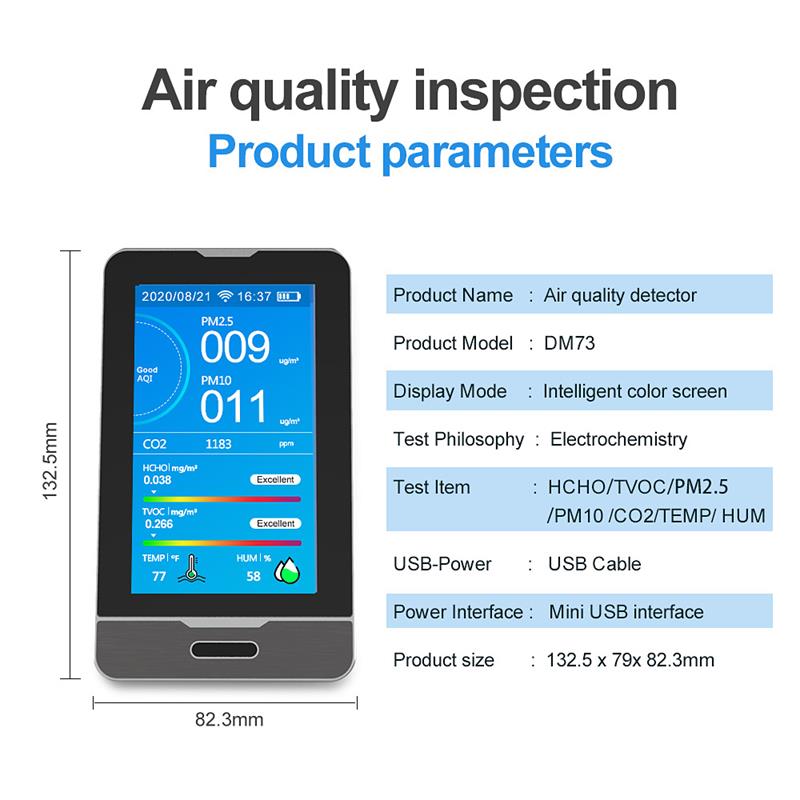

Item
Air Quality Monitor
Product Size
132.5 x 79 x 82.3mm
Display Method
LCD Screen
Measuring Item
CO2, PM2.5, PM10, AQI,
HCHO (Formaldehyde),
TVOC, Temperature, Humidity
Detection method for CO2
Infrared ( NDIR )
Detection method for PM2.5
Laser Scattering
CO2 measuring range
400-5000 ppm
PM2.5 measuring range
0-999 ug / m3
HCHO measuring range
0.001 - 1.999 mg / m3
TVOC measuring range
0.001 - 9.999 mg / m3
Sampling Time
1.5 Seconds
Power Source
3000 mAh Rechargeable Lithium battery.
5V DC Power Charging via USB Port
