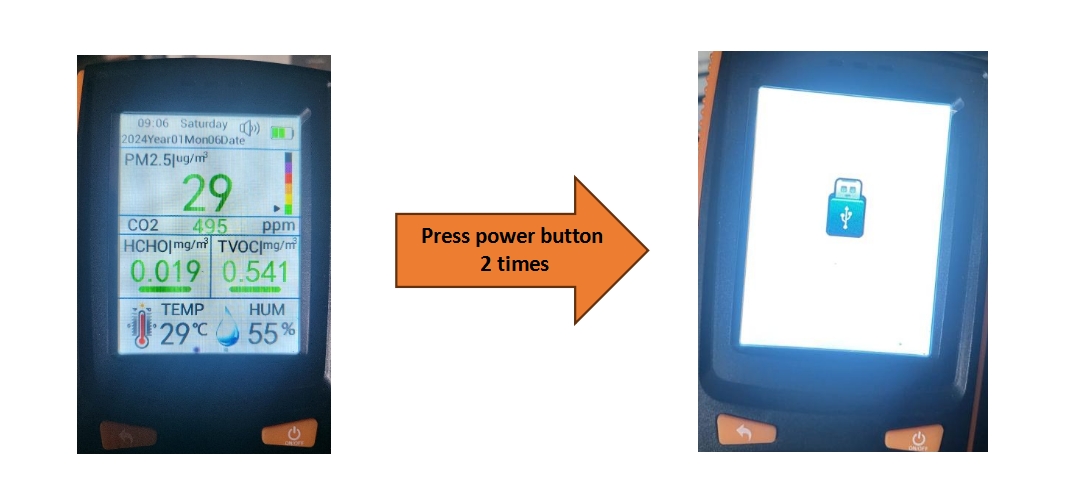

Instructions to End-User to Transfer Data

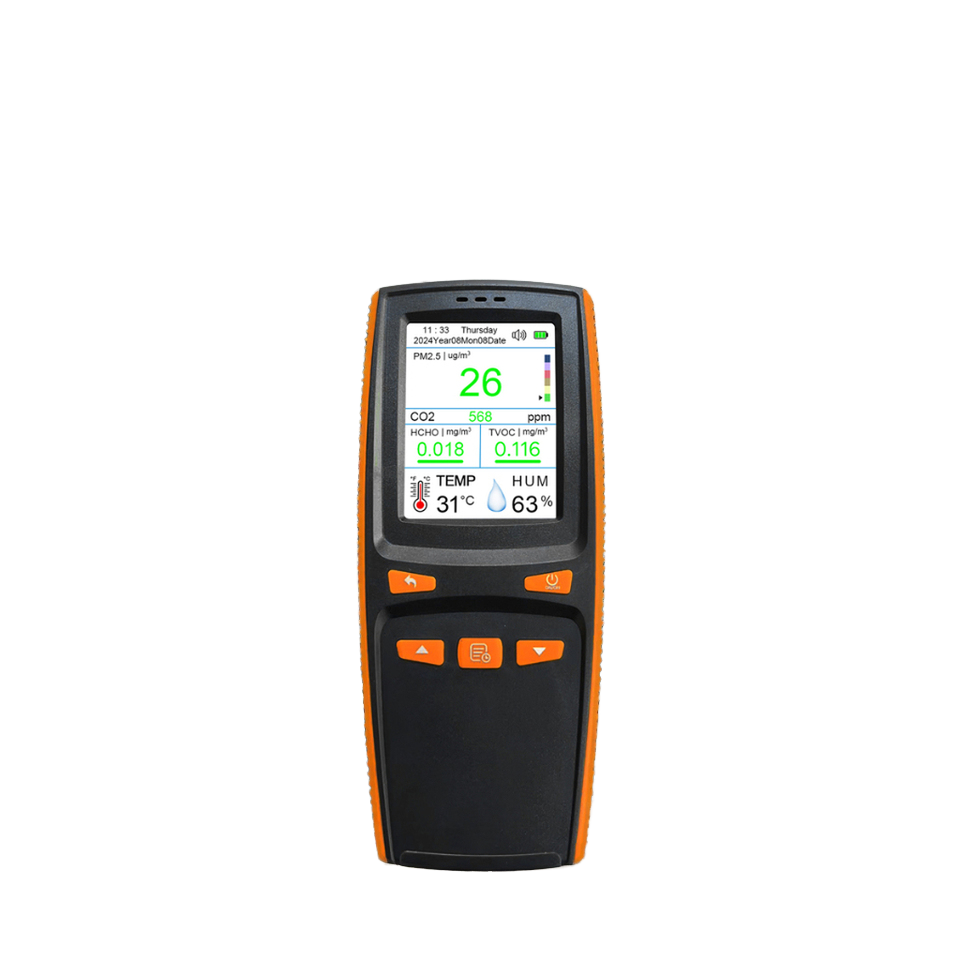

It is a 10-in-1 multifunctional air quality detector that not only monitors various air quality indicators in real time, but also has data storage, export, and download functions, allowing you to have a thorough understanding of the air around you. Accurately detecting key indicators CO2 ,PM2.5/10/1.0,formaldehyde, TVOC, temperature, humidity, AQI to comprehensively present the real situation of air quality for you. It is built in storage space, capable of continuously recording air quality data, it can faithfully preserve historical information of air quality, providing you with long-term and reliable reference.

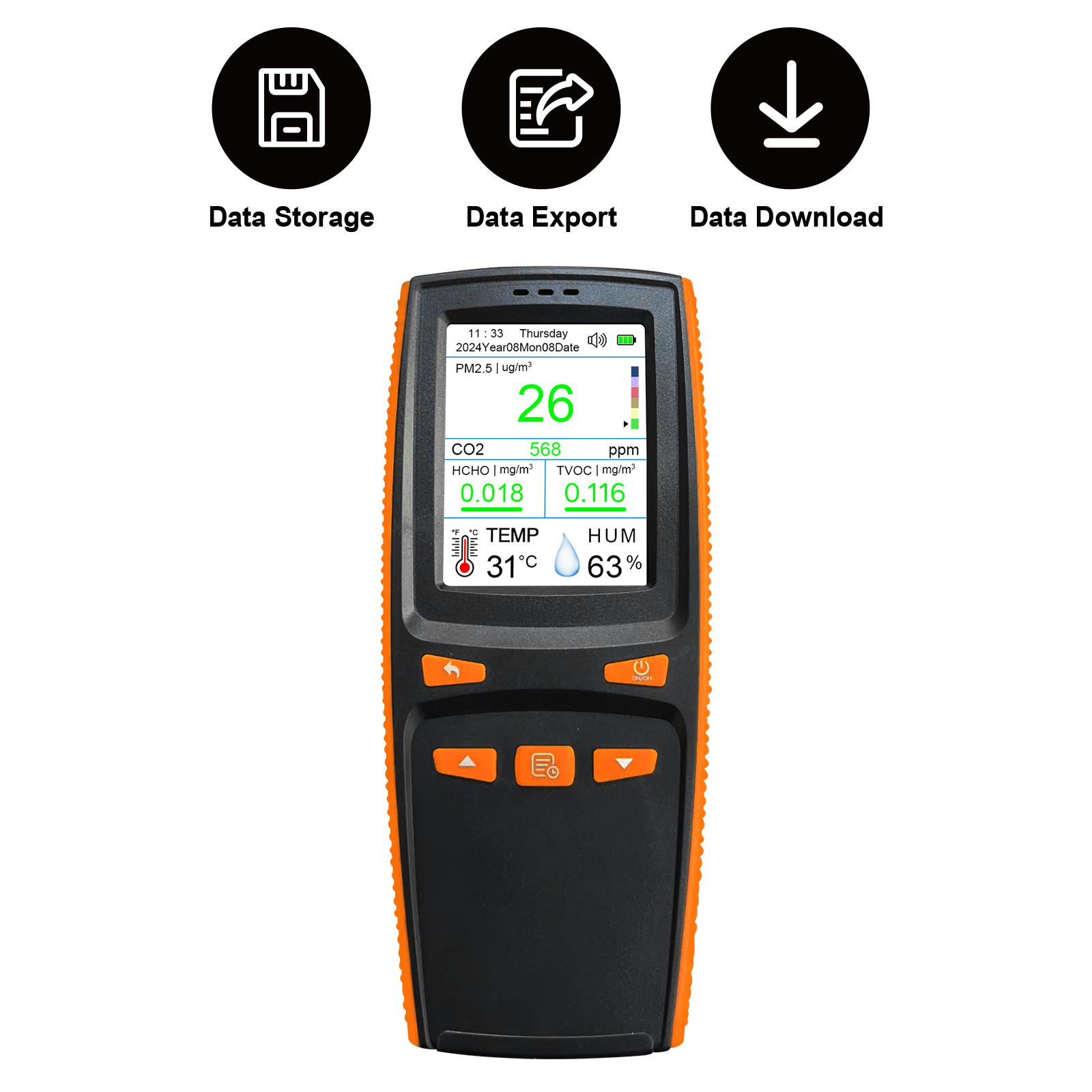

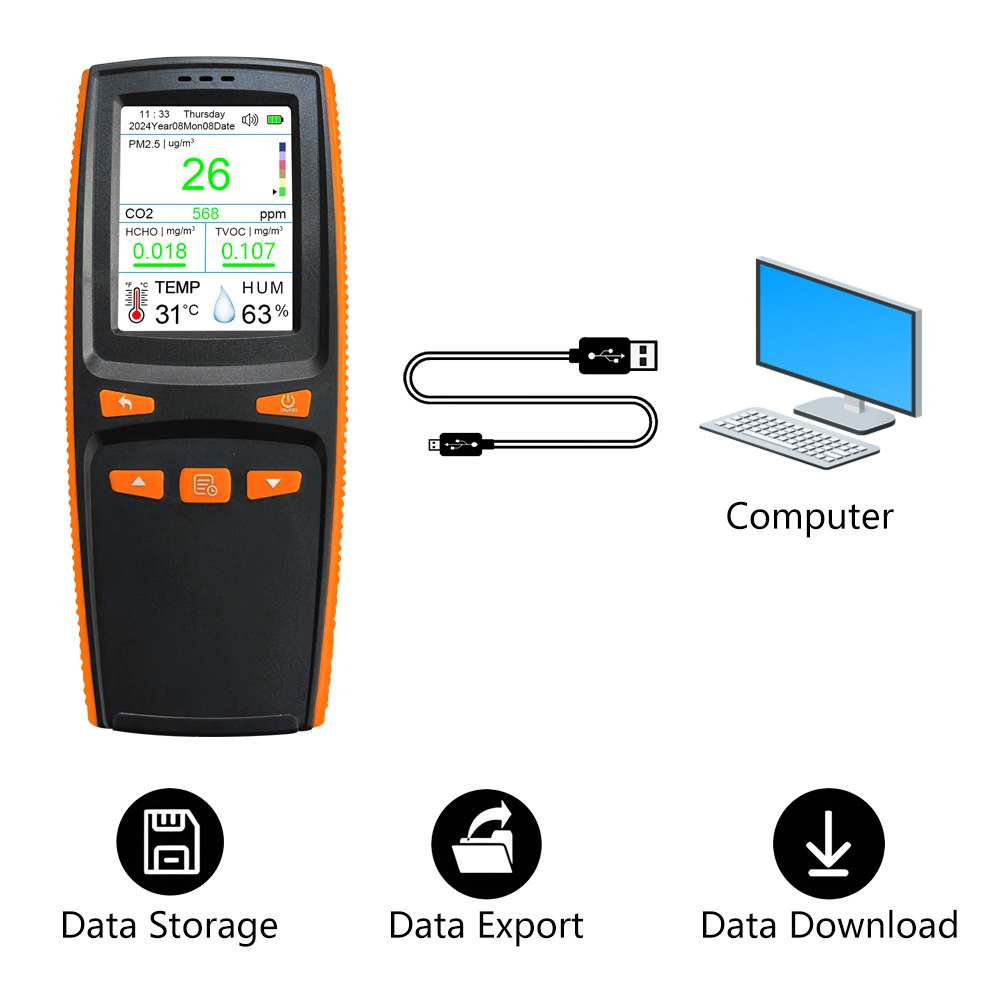

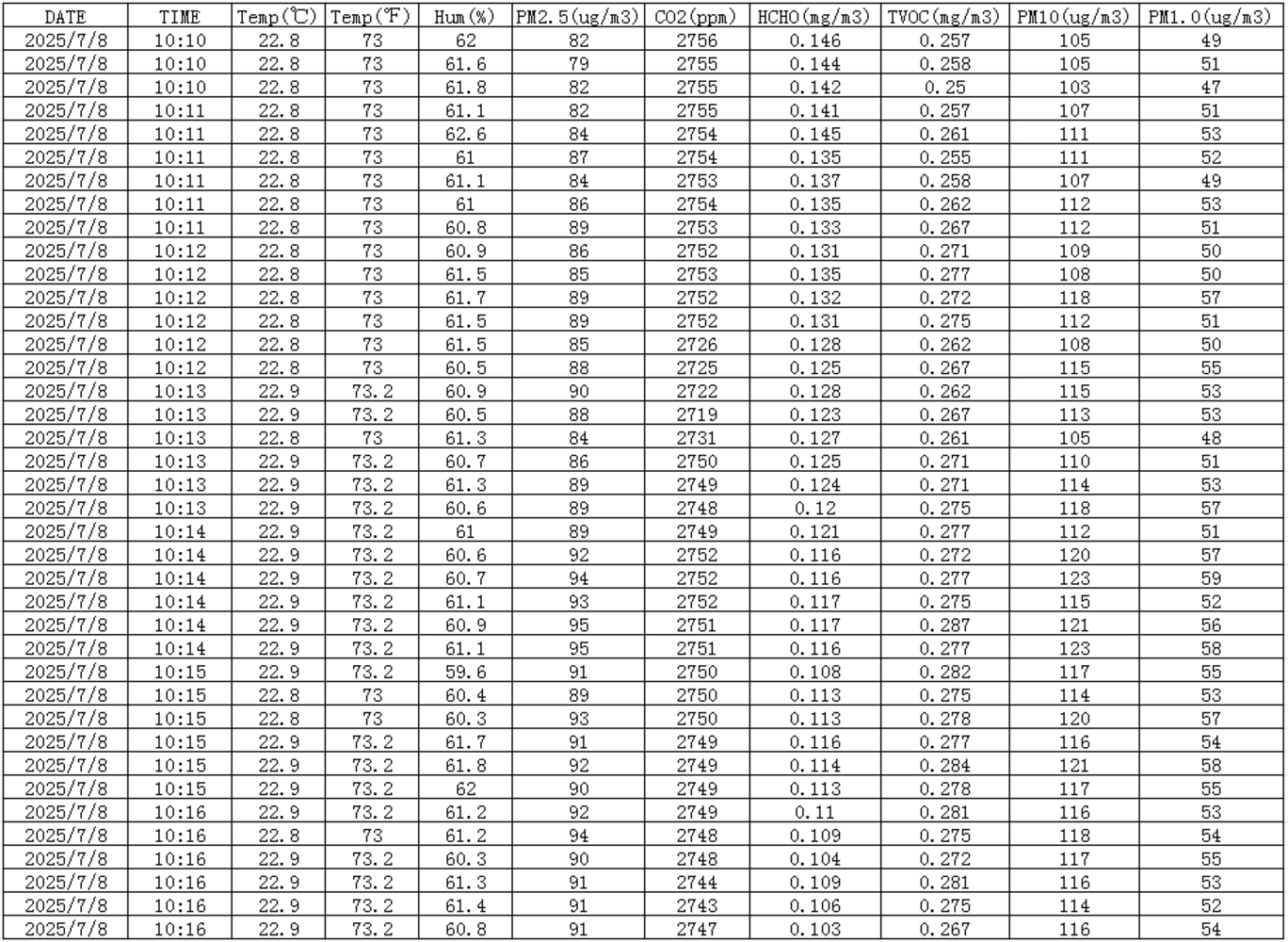

Through simple operations, stored data can be quickly exported. Provide you with data analysis to clearly understand the changing trends of air quality and provide scientific basis for improving the environment. When the air quality exceeds the healthy range, you can quickly take corresponding measures to protect your own and your family's respiratory health.
Product name |

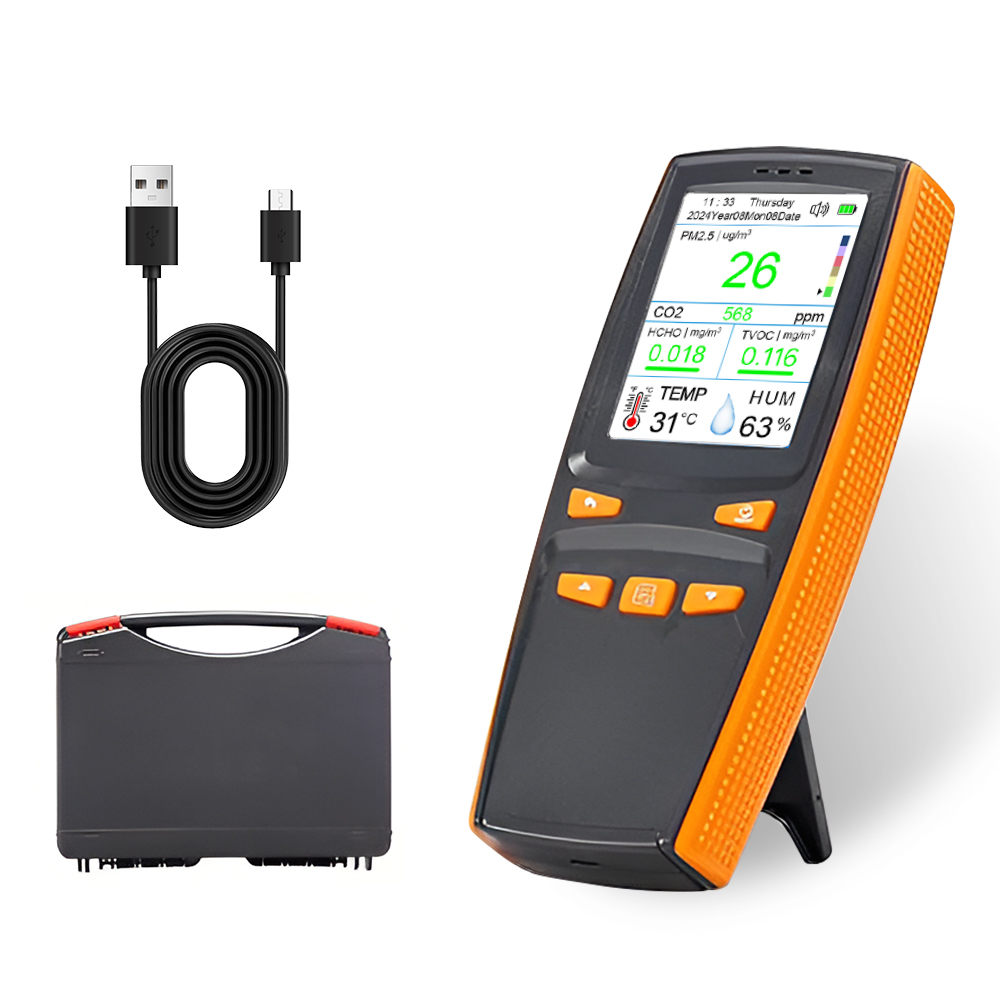

Multi-function Air Quality Detector with Data log and Download |
Material |
ABS |

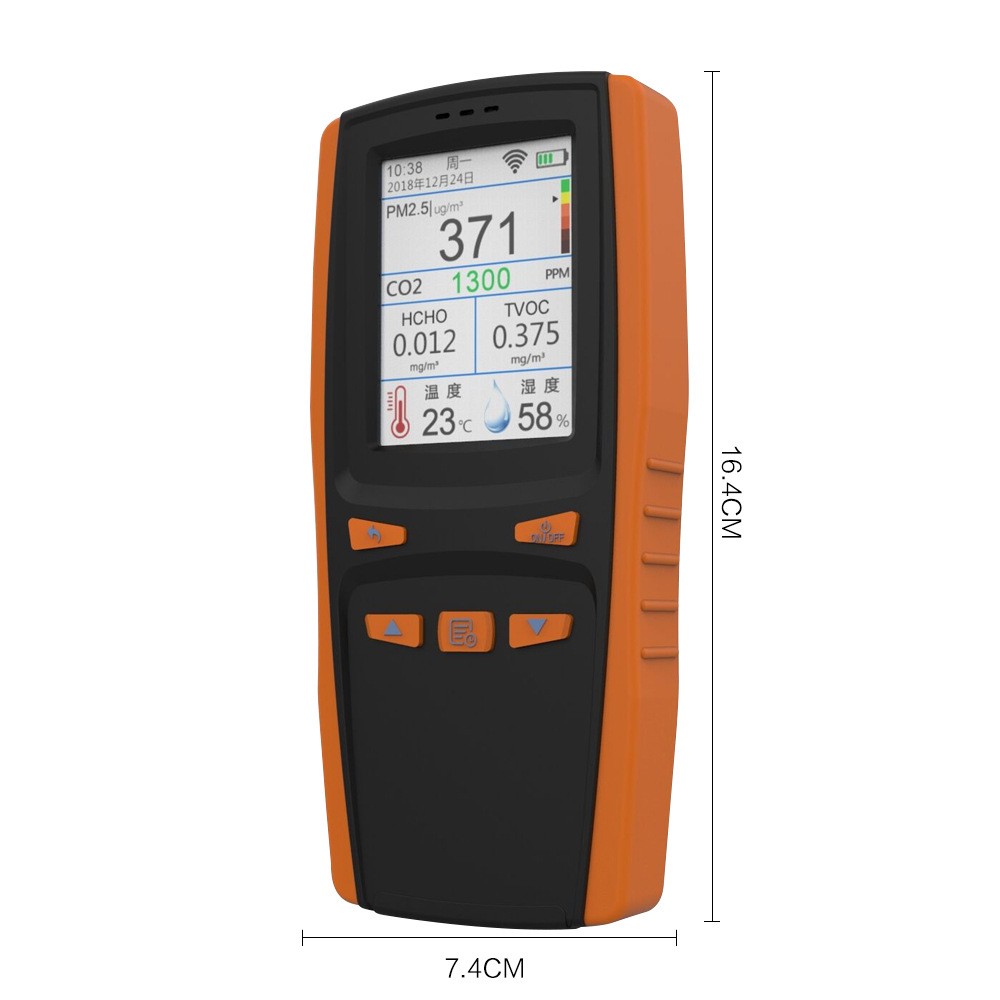

Product size |
164*74*26mm |
Display |
LCD screen |
Sensor Technology |
PM2.5: Laser Scattering
HCHO/TVOC: Electrochemistry
CO2: Infrared (NDIR) Temperature and Humidity sensor |
Temperature unit |
Switch between Celsius and Fahrenheit |
Detection range |
AQI(0-500)
PM2.5 (0-999 ug/M³)
CO2 ( 400-5000 ppm) HCHO(0.001-1.999Mg/M³) TVOC(0.001-9.999Mg/M³) |
Power supply |
Rechargeable Li-battery 1500mah including USB Charging cable |

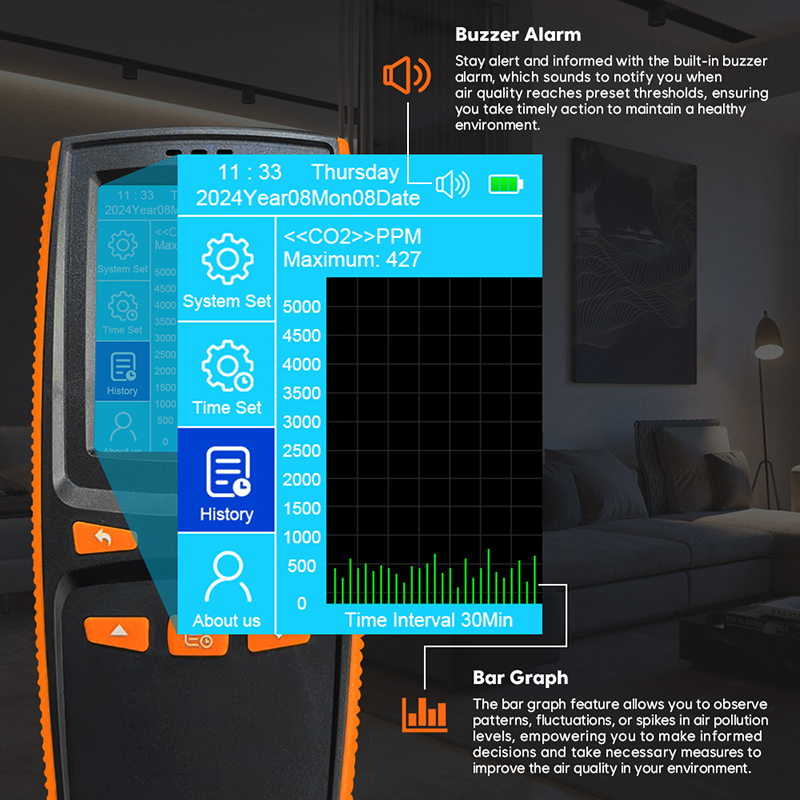

Inter-Record Unit
Frequency
Quantities of Days
1h
24
4
2h
12
8
4h
6
15
6h
4
22
12h
2
45
